Tie rod cylinders _Tie Rod Cylinders

Tie-rod Hydraulic Cylinders

For Agricultural Applications

Medium duty construction

Polished rod hard chrome plated thickness 0.001” , surface induction hardened

Precision honed steel tube

Ductile iron piston, gland, end mounting and clevis

High tensile strength tie rod preventing stretching under pressure

Tube Seal: O-ring

Rod Seal: Deep polypak with B lip design; metal canned wiper.

2-Piece 93A urethane piston seal, with a 70A nitrile energizer.

All Seals: Manufactured to US specifications.

NPT ports for standard cylinder line, O-ring boss(SAE) port available upon request

2500PSI double acting, 2000PSI for 5” bore cylinders

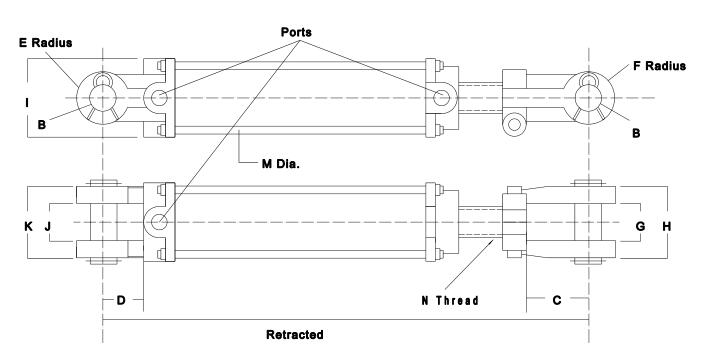

Dimensions in inches(mm)
Bore	B	C	D	E	F	G	H	I	J	K	M	N	Tube O.D.	Ports (NPTF)
2.00	1.015	2.125	1.625	1.000	1.000	1.142	2.520	2.835	1.142	2.520	M10	1-1/8-12UNF	2.375	3/8
(50.80)	(25.78)	(53.98)	(41.28)	(25.40)	(25.40)	(29.01)	(64.01)	(72.01)	(29.01)	(64.01)		1-1/8-12UNF	(60.3)
2.50	1.015	2.125	1.625	1.000	1.000	1.142	2.520	3.150	1.142	2.520	M10	1-1/8-12UNF	2.875	3/8
(63.50)	(25.78)	(53.98)	(41.28)	(25.40)	(25.40)	(29.01)	(64.01)	(80.01)	(29.01)	(64.01)		1-1/8-12UNF	(73.0)
3.00	1.015	2.125	1.625	1.125	1.000	1.142	2.600	3.740	1.142	2.520	M12	1-1/4-12UNF	3.375	1/2
(76.20)	(25.78)	(53.98)	(41.28)	(28.58)	(25.40)	(29.01)	(66.04)	(95.00)	(29.01)	(64.01)		1-1/4-12UNF	(85.7)
3.50	1.015	2.125	1.625	1.125	1.125	1.142	2.600	4.134	1.142	2.520	M12	1-1/4-12UNF	3.875	1/2
(88.90)	(25.78)	(53.98)	(41.28)	(28.58)	(28.58)	(29.01)	(66.04)	(105.00)	(29.01)	(64.01)		1-1/4-12UNF	(98.4)
4.00	1.015	2.125	1.625	1.125	1.125	1.142	2.600	4.724	1.142	2.600	M12	1-1/4-12UNF	4.375	1/2
(101.60)	(25.78)	(53.98)	(41.28)	(28.58)	(28.58)	(29.01)	(66.04)	(119.99)	(29.01)	(66.04)		1-1/4-12UNF	(111.1)
5.00	1.015	2.125	2.250	1.250	1.500	1.260	2.677	6.000	1.260	3.500	M16	1-1/4-12UNF	5.453	1/2
(127.00)	(25.78)	(53.98)	(57.15)	(31.75)	(38.10)	(32.00)	(68.00)	(152.40)	(32.00)	(88.90)		1-1/4-12UNF	(138.5)

	Model			Weight kgs	Rod Dia.	Bore Size inch	Port Type	PIN Centers Retracted inch	PIN Centers Extended inch	Stroke inch
1	TIE-ROD	20	04	6.5	1-1/8"	2.0	3/8NPT	14.25	18.25	4
2	TIE-ROD	20	06	7.2				16.25	22.25	6
3	TIE-ROD	20	08	8.0				18.25	26.25	8
4	TIE-ROD	20	10	8.5				20.25	30.25	10
5	TIE-ROD	20	12	9.2				22.25	34.25	12
6	TIE-ROD	20	14	10.0				24.25	38.25	14
7	TIE-ROD	20	16	10.7				26.25	42.25	16
8	TIE-ROD	20	18	11.4				28.25	46.25	18
9	TIE-ROD	20	20	12.1				30.25	50.25	20
10	TIE-ROD	20	24	13.5				34.25	58.25	24
11	TIE-ROD	20	30	15.6				40.25	70.25	30
12	TIE-ROD	20	36	17.7				46.25	82.25	36
13	TIE-ROD	25	04	7.4	1-1/8"	2.5	3/8NPT	14.25	18.25	4
14	TIE-ROD	25	06	8.2				16.25	22.25	6
15	TIE-ROD	25	08	9.2				18.25	26.25	8
16	TIE-ROD	25	10	9.7				20.25	30.25	10
17	TIE-ROD	25	12	10.5				22.25	34.25	12
18	TIE-ROD	25	14	11.3				24.25	38.25	14
19	TIE-ROD	25	16	12.1				26.25	42.25	16
20	TIE-ROD	25	18	12.9				28.25	46.25	18
21	TIE-ROD	25	20	13.7				30.25	50.25	20
22	TIE-ROD	25	24	15.3				34.25	58.25	24
23	TIE-ROD	25	30	17.7				40.25	70.25	30
24	TIE-ROD	25	36	20.1				46.25	82.25	36
25	TIE-ROD	30	04	9.8	1-1/4"	3.0	1/2NPT	14.25	18.25	4
26	TIE-ROD	30	06	10.8				16.25	22.25	6
27	TIE-ROD	30	08	12.1				18.25	26.25	8
28	TIE-ROD	30	10	12.8				20.25	30.25	10
29	TIE-ROD	30	12	13.8				22.25	34.25	12
30	TIE-ROD	30	14	14.8				24.25	38.25	14
31	TIE-ROD	30	16	15.8				26.25	42.25	16
32	TIE-ROD	30	18	16.8				28.25	46.25	18
33	TIE-ROD	30	20	17.8				30.25	50.25	20
34	TIE-ROD	30	24	19.7				34.25	58.25	24
35	TIE-ROD	30	30	22.7				40.25	70.25	30
36	TIE-ROD	30	36	25.7				46.25	82.25	36
37	TIE-ROD	35	04	10.6	1-1/4"	3.5	1/2NPT	14.25	18.25	4
38	TIE-ROD	35	06	11.6				16.25	22.25	6
39	TIE-ROD	35	08	13.1				18.25	26.25	8
40	TIE-ROD	35	10	13.6				20.25	30.25	10
41	TIE-ROD	35	12	14.7				22.25	34.25	12
42	TIE-ROD	35	14	15.8				24.25	38.25	14
43	TIE-ROD	35	16	16.9				26.25	42.25	16
44	TIE-ROD	35	18	18.0				28.25	46.25	18
45	TIE-ROD	35	20	19.1				30.25	50.25	20
46	TIE-ROD	35	24	23.5	1-1/2"	3.5	1/2NPT	34.25	58.25	24
47	TIE-ROD	35	30	27.0				40.25	70.25	30
48	TIE-ROD	35	36	30.5				46.25	82.25	36
49	TIE-ROD	40	04	13.4	1-1/4"	4.0	1/2NPT	14.25	18.25	4
50	TIE-ROD	40	06	14.7				16.25	22.25	6
51	TIE-ROD	40	08	16.3				18.25	26.25	8
52	TIE-ROD	40	10	17.2				20.25	30.25	10
53	TIE-ROD	40	12	18.5				22.25	34.25	12
54	TIE-ROD	40	14	19.8				24.25	38.25	14
55	TIE-ROD	40	16	21.1				26.25	42.25	16
56	TIE-ROD	40	18	23.0	1-1/2"	4.0	1/2NPT	28.25	46.25	18
57	TIE-ROD	40	20	24.3				30.25	50.25	20
58	TIE-ROD	40	24	26.9				34.25	58.25	24
59	TIE-ROD	40	24-175	29.1	1-3/4"	4.0	1/2NPT	34.25	58.25	24
60	TIE-ROD	40	30	33.1				40.25	70.25	30
61	TIE-ROD	40	36	37.1				46.25	82.25	36
62	TIE-ROD	50	04	24.3	1-1/2"	5.0	1/2NPT	16.25	20.25	4
63	TIE-ROD	50	06	25.8				18.25	24.25	6
64	TIE-ROD	50	08	27.8				20.25	28.25	8
65	TIE-ROD	50	10	28.8				22.25	32.25	10
66	TIE-ROD	50	12	33.2	2"	5.0	1/2NPT	24.25	36.25	12
67	TIE-ROD	50	14	35.0				26.25	40.25	14
68	TIE-ROD	50	16	36.9				28.25	44.25	16
69	TIE-ROD	50	18	38.7				30.25	48.25	18
70	TIE-ROD	50	20	40.5				32.25	52.25	20
71	TIE-ROD	50	24	44.2				36.25	60.25	24
72	TIE-ROD	50	30	49.8				42.25	72.25	30
73	TIE-ROD	20	08A	8.0	1-1/8"	2.0	3/8NPT	20.25	28.25	8
74	TIE-ROD	25	08A	10.0	1-1/4"	2.5	3/8NPT	20.25	28.25	8
75	TIE-ROD	30	08A	12.5	1-3/8"	3.0	1/2NPT	20.25	28.25	8
76	TIE-ROD	35	08A	13.5	1-3/8"	3.5	1/2NPT	20.25	28.25	8
77	TIE-ROD	40	08A	17.0	1-3/4"	4.0	1/2NPT	20.25	28.25	8
78	TIE-ROD	20	16A	13.0	1-1/8"	2.0	3/8NPT	31.50	47.50	16
79	TIE-ROD	25	16A	15.0	1-1/4"	2.5	3/8NPT	31.50	47.50	16
80	TIE-ROD	30	16A	19.5	1-3/8"	3.0	1/2NPT	31.50	47.50	16
81	TIE-ROD	35	16A	23.0	1-3/8"	3.5	1/2NPT	31.50	47.50	16
82	TIE-ROD	40	16A	26.0	1-3/4"	4.0	1/2NPT	31.50	47.50	16
